USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974

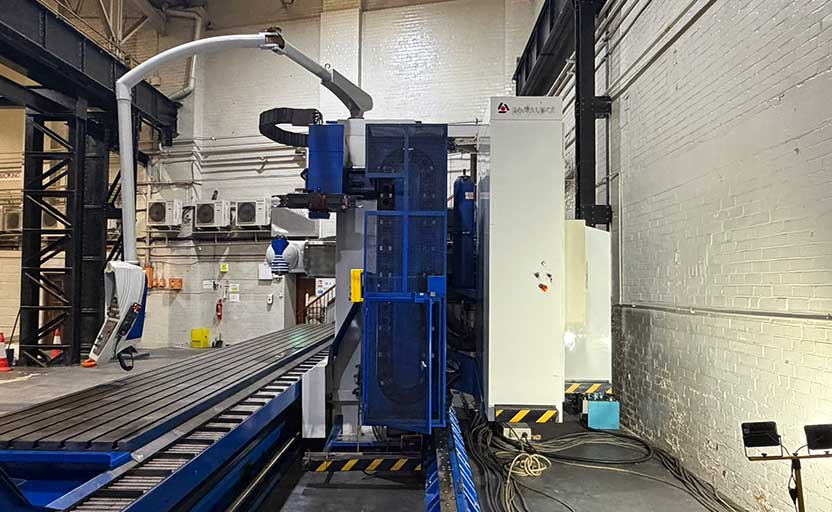

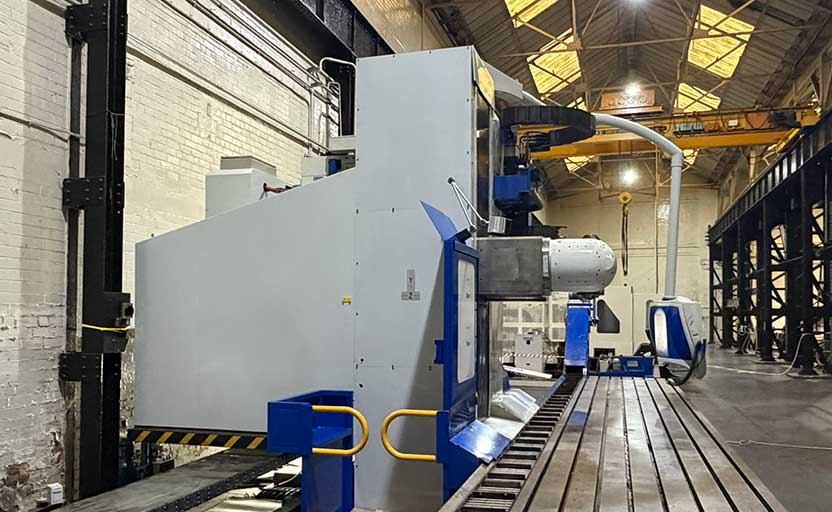

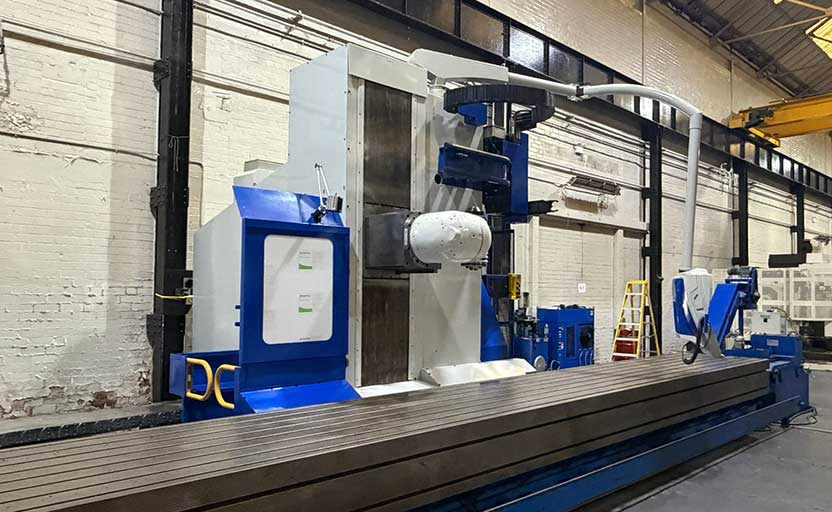

Used Soraluce Soramill model SP 10000 travelling column, table type cnc milling centre, with automatic oil mist lubricated orthogonal milling head with 1 x 1 degree indexing and Heidenhain TNC 430 M control system as described within the following standard basic machine specification. Year 2002 SN 8647

USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
USED SORALUCE SP1000 Travelling Column Table Type Milling Machine – TWW Cat 7974
FEATURES
Preloaded double nuts and recirculating ballscrews to each axis
Linear Guiding System with recirculating cylindrical rollers and steel guideway assemblies in X, Y and Z axes.
Independent A.C Drive motor to each axis.
Linear Transducer in X, Y and Z-axes with air purge system.
Automatic tool clamping. Automatic hydraulic tool releasing device.
Technical Specification
Options
Additional Info

Technical Specification

Table (Bed) Working Surface
10,000 x 1,100 MM
Column Traverse (X)
8,500 MM
Vertical Traverse (Y)
1,000 MM
Ram Traverse (Z)
1,200 MM
Spindle Motor
28 kW
Spindle Taper. Standard ISO 50
BT50 tooling
Pullstud
DIN 6987 2-Form A. ISO 7388/2-Form A
Independent Gearbox with 2 Ranges
Speed Range
20 to 4000 RPM
Feed Range
5 to 5000 MM/Min
Rapid Traverse Rate (X, Y, Z)
15,000 MM/Min

Options

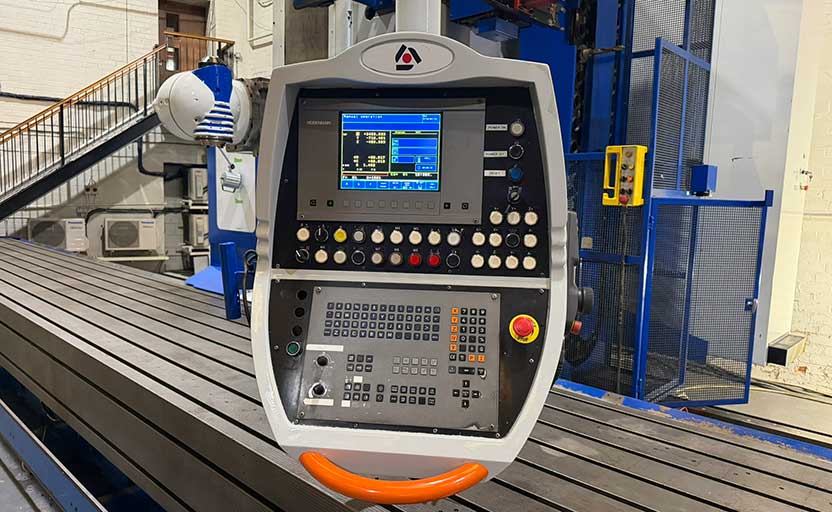

  • CNC Control HEIDENHAIN TNC-430-M. (Flat TFT screen with digital drives) 9 axes CNC and 1 spindle, 5 of them simultaneously interpolated.
  • Front metallic roller blind cover in both upper and lower ram area together with side protective cover.
  • Working area lighting.
  • Electrical cabinet cooling system.
  • Electrical cabinet lighting.
  • Heidenhain HR410 portable electronic handwheel with 3m spiral cable.
  • Horizontally articulated pendant for CNC control.

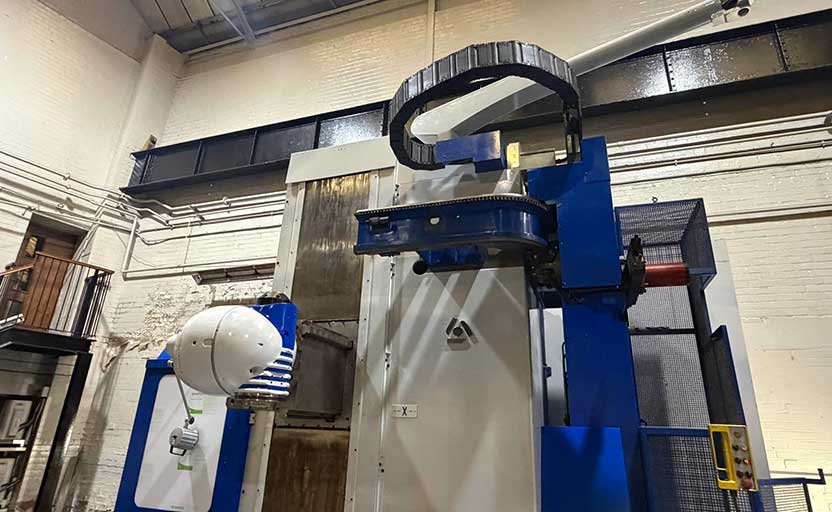

  • Orthogonal head 28KW, 800Nm, 1deg x 1 deg, 4000rpm oil lubricated Price includes oil cooling unit for both head and gearbox. Option G2, Ram prepared for 4000rpm, is also included.
  • Coolant through the spindle type AD.
  • Coolant system with 500l capacity tank with two pumps providing low and high pressure of 3 and 8 bars and 50l/min flow. The system includes a combined paper and magnetic drum-filtering unit.
  • Thermal expansion compensation for the ram, with air exhaust system, for machines with Heidenhain TNC-426-CB CNC control.
  • Standard operators platform fixed to the column.
  • Vertical Traverse Y = 1600 mm.
  • 40 tools capacity toolchanger magazine, BT50.
  • Max. Tool length = 400 mm.
  • Max. Tool diameter: - With full magazine = 120 mm. / With adjacent position empty = 250 mm.
  • Max. Tool weight = 20 KGs.
  • Mean tool weight with full magazine = 10 KGs.
  • Max. Permitted total weight = 20 KGs.
  • Swarf Conveyor
  • Hinge type conveyor belt
  • Width = 315 mm.
  • Pitch = 50 mm.

Additional
Information

Machine preparation for the addition of a 4th axis electro-mechanical table. Including the switchgear required on the hydraulic unit and in the electrical cabinet (feed regulator for table servomotor), hydraulic hoses and electrical cables to the table location and the associated connectors.

SP-10000 Splash Guarding against swarf at the table front and both sides. Consists of four sliding front doors with a height from the floor of 2.100mm and a length of 1.700mm each one. Manually operated opening and closing with mechanical interlock and interlocking devices in both central doors. The doors can be opened for the full longitudinal traverse. The rear of the table is open. Both right and left sides of the table are closed by a fixed protection. Upper side is open. The operator working position is in front of the splash guarding.

DEFENSE in the back and both lateral sides of the machine column.
This defence is made to avoid anyone trapped under the ram, or hit when it is going to a lower position. The defence of the rear has a height from the floor level of 2.300mm and a door that gives access to the area of the ram. This door is manually opened outwards. The metallic protections of the right and left sides are fixed to the column. The upper side is opened.

CE17 Protection of both sides of the column with security bumpers.
