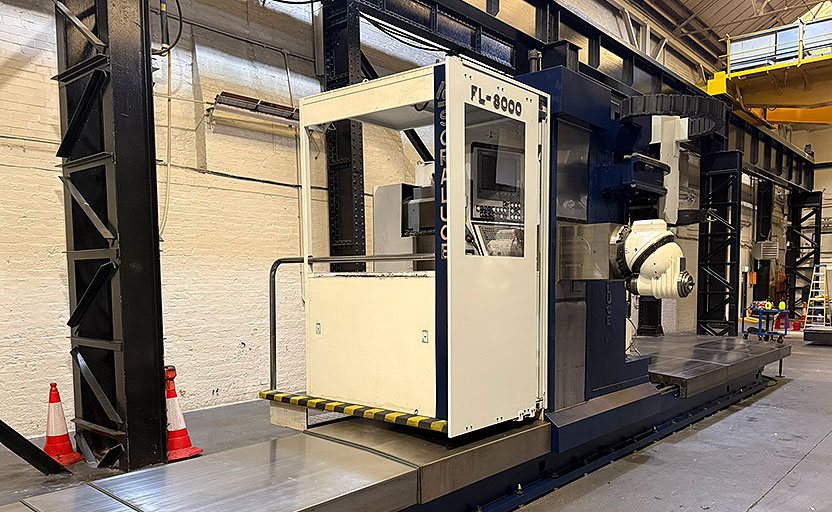

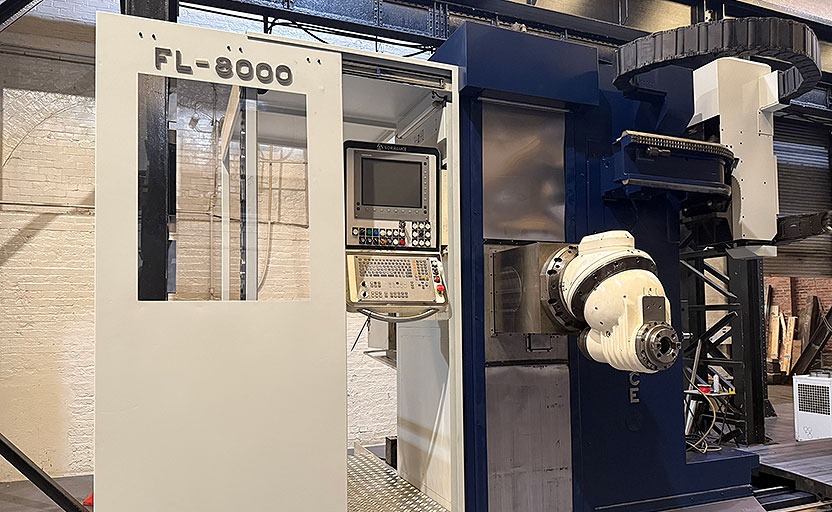

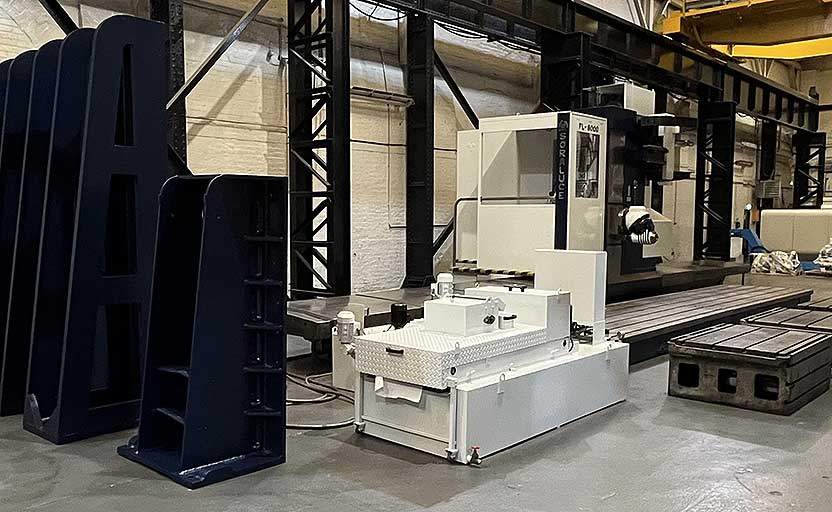

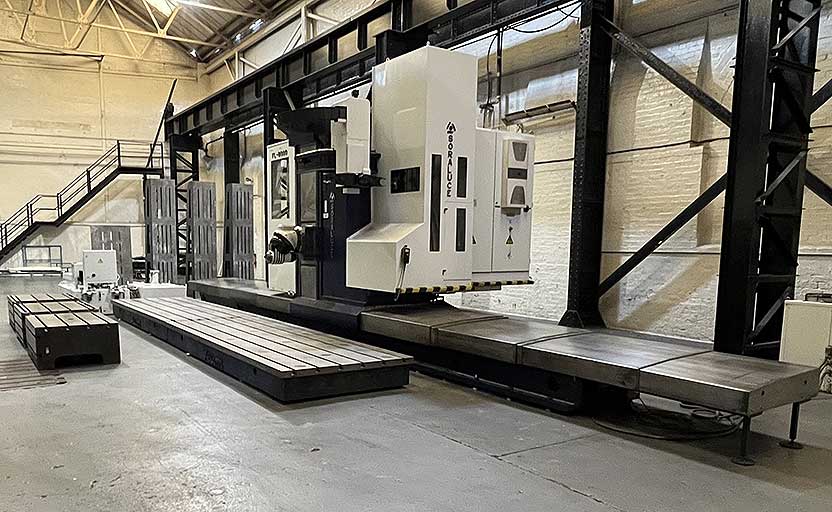

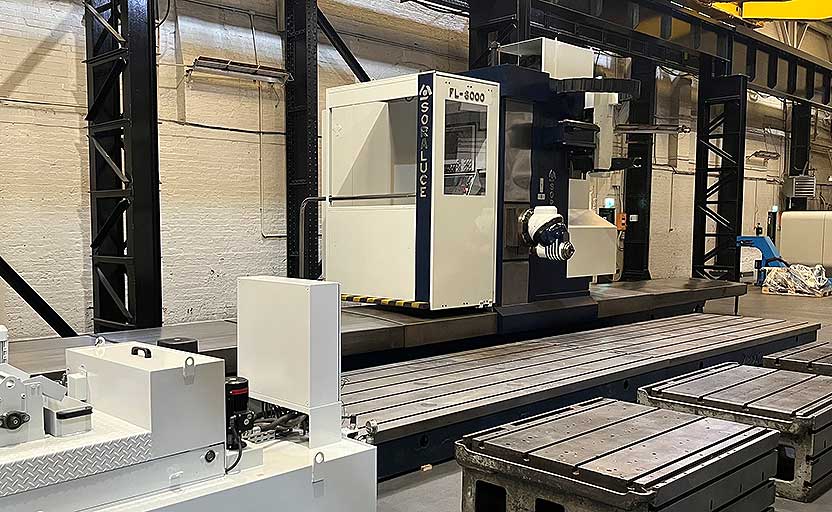

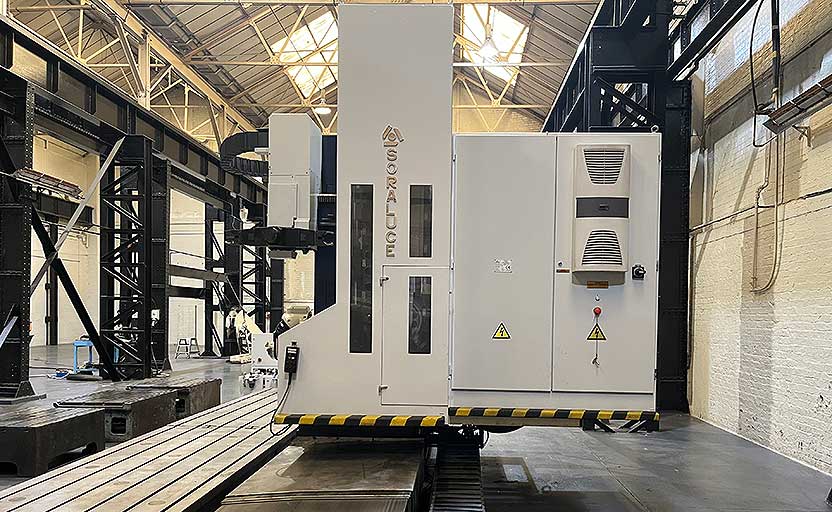

USED SORALUCE FL8000 Travelling Column Floor Type Milling Machine – TWW Cat 8070
USED TRAVELLING COLUMN FLOOR TYPE CNC MILLING CENTRE WITH HEAVY DUTY LINEAR GUIDEWAYS FULLY AUTOMATIC UNIVERSAL MICRON (0.001 x 0.001 DEG) INDEXING HEAD AND 40 STATION ATC. SN 7864. YEAR OF MANUFACTURE 2009

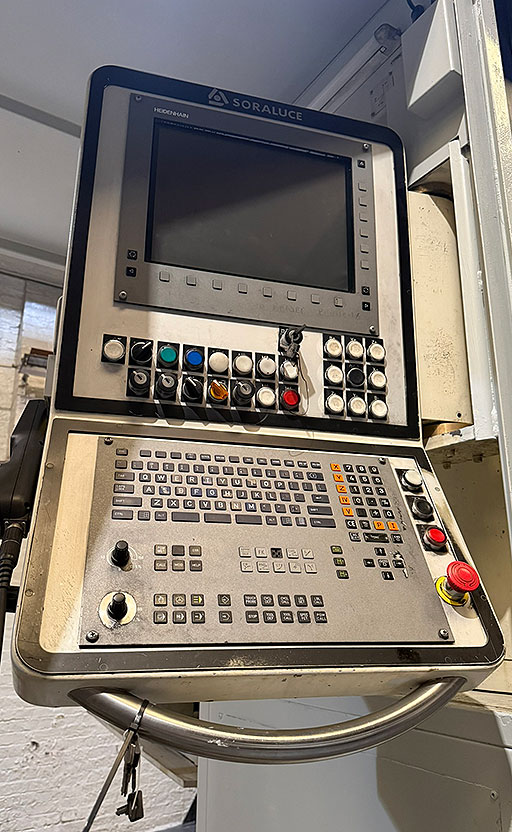

- HEIDENHAIN ITNC-530 CNC

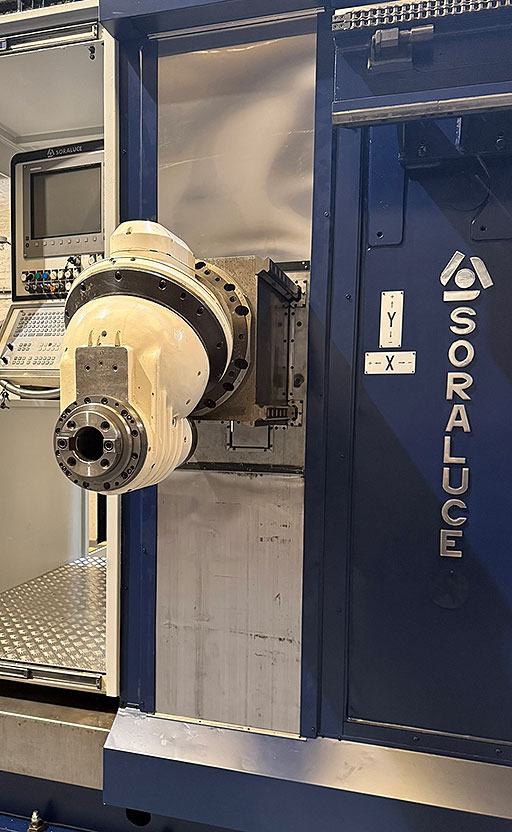

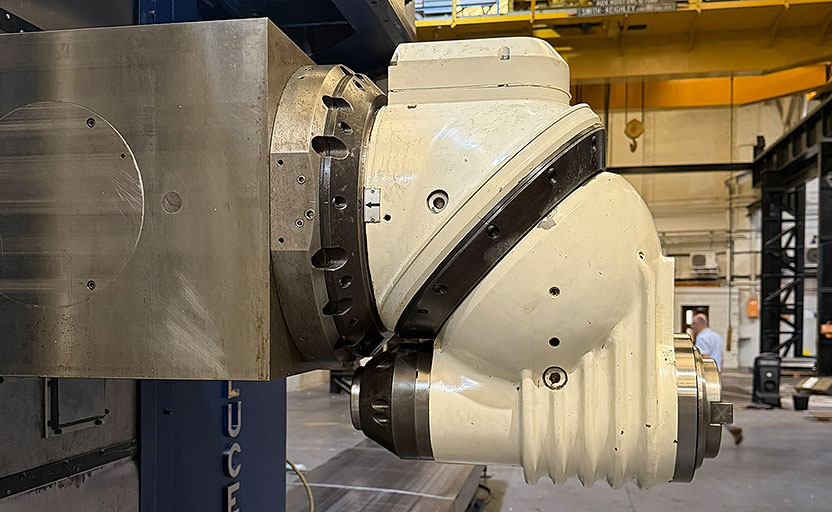

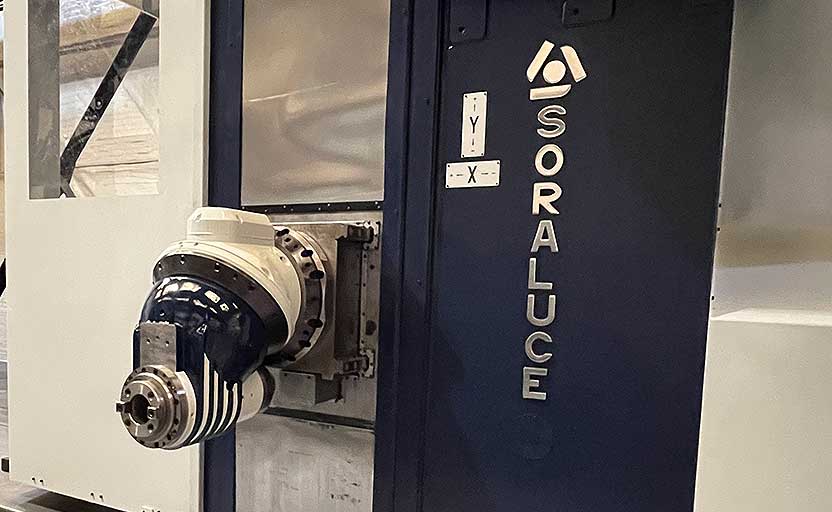

- AUTOMATIC INDEXING HEAD 28 KW / 760 NM 0.001˚ X 0.001˚ / 4.000RPM. AIR & OIL MIST LUBRICATION
- 40 STATION AUTOMATIC TOOL CHANGER
- HORIZONTAL/VERTICAL TOOL CHANGE FACILITY
- MOTORIZED TOOL EXCHANGE TRANSFER ARM

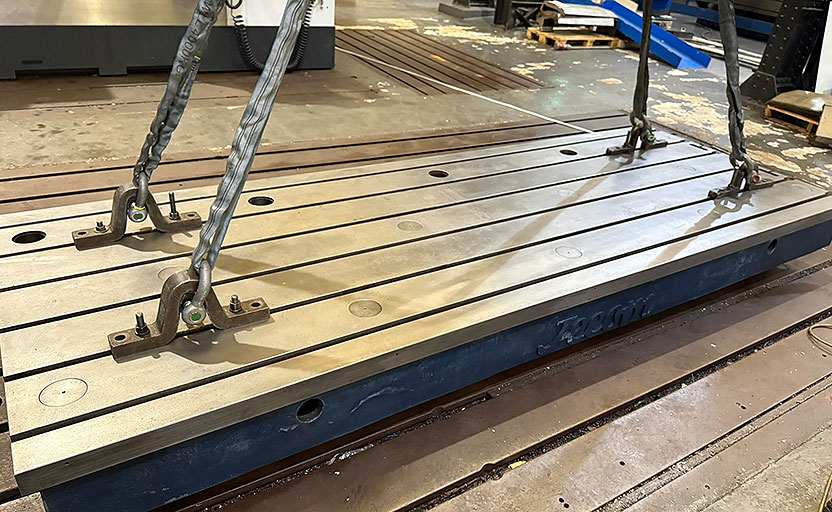

- 1 OFF – FLOOR PLATE OF 8,000 X 1,500 X 300 MM WITH LOADING CAPACITY OF 10 TON/M2.
- COOLANT SYSTEM 1,000L CAPACITY, 2 PUMPS 5 & 12 BARS. PAPER & MAGNETIC FILTERING
- COOLANT THROUGH SPINDLE TYPE ‘AD’
- COLUMN PROTECTION
- ELECTROMAGNETIC COMPATIBILITY
- FEED RATE OF 5 TO 10,000 MM/MIN
- HEIDENHAIN MOTOR 29.0 KW
- LATERAL PROTECTION
- MACHINE PREPARATION FOR ADDITION OF 4TH AXIS. (PM2 X 2)

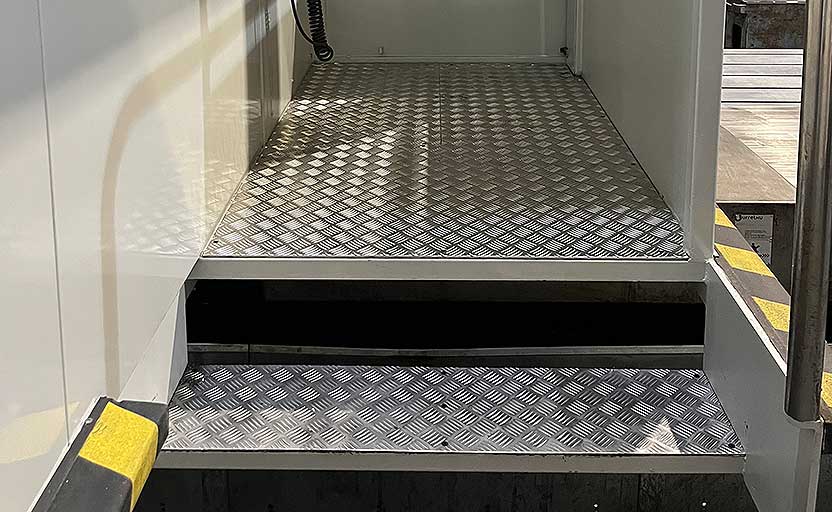

- OPERATOR’S PLATFORM – COLUMN MOUNTED
- PENDULUM WORKING SYSTEM
- RAPID TRAVERSE (X, Y, Z) 25,000 MM/MIN
- SMART NC OPERATION FOR HEIDENHAIN ITNC-530
- SPINDLE SPEED RANGE OF 20 TO 4,000 RPM
- SWARF CONVEYOR
- WORKING AREA PROTECTION
- ZF 2 SPEED GEARBOX
- 3 POSITION KEY SELECTOR SWITCH
Technical Specification
Technical Specification
Column Traverse (X)
7,500 MM
Vertical Traverse (Y)
1,400 MM
Ram Traverse (Z)
1,000 MM
Spindle Motor
28.0 kW
Spindle Taper. Standard ISO 50

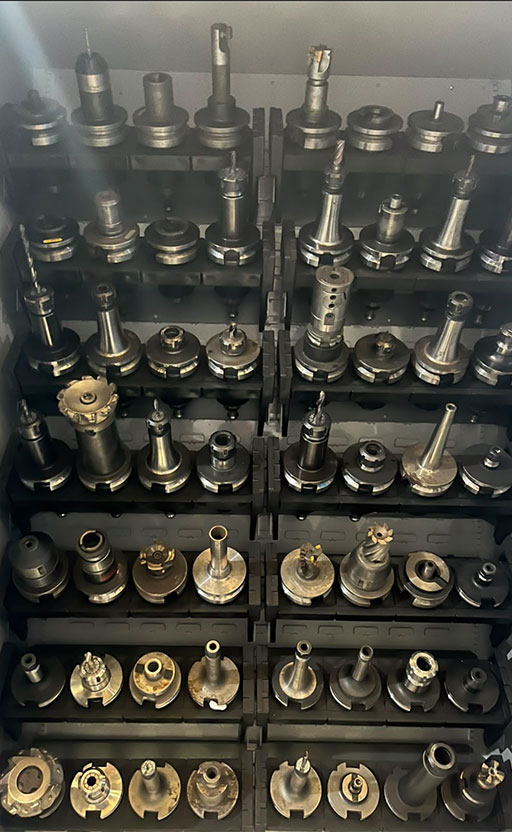

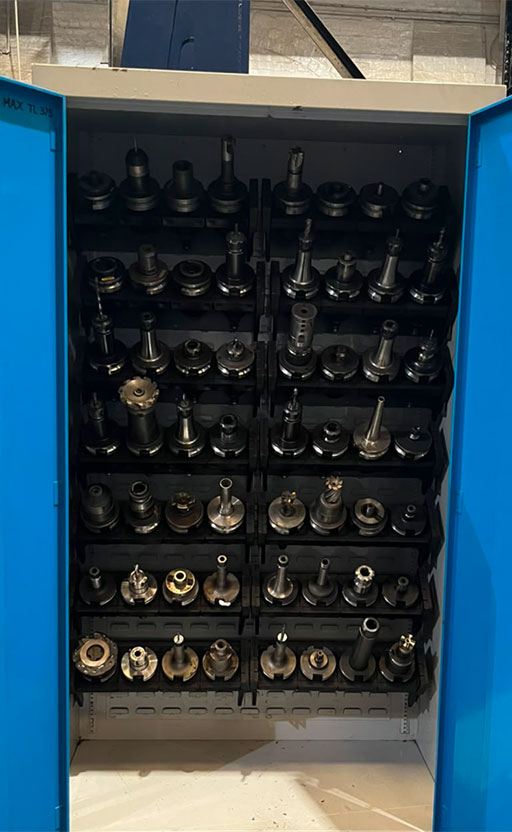

BT50 Tooling
Independent Gearbox with 2 Ranges
Speed Range (MAX)
4000 RPM
Feed Range
5 to 10,000 MM/Min
Rapid Traverse Rate (X, Y, Z)
25,000 MM/Min
ATC Capacity
40 Stations
Heidenhain Linear Measurement Scales
Heidenhain TNC530 Control System
