USED Proking BN70 x 5000 Flat Bed CNC Lathe – TWW Cat 8026
SOLD – PLEASE CONTACT US FOR SIMILAR OFFERINGS
Heavy Duty Large Swing Flat Bed CNC Lathe with Hardened & Ground Box Guideways, Heavy Duty Central Boring Attachment & Large Capacity Steady Rest
FEATURES
Heavy One Piece Cast Iron Bed Construction.
Heavy Duty Hardened & Ground Solid Slideways.
4-Step Automatic Gear Change.

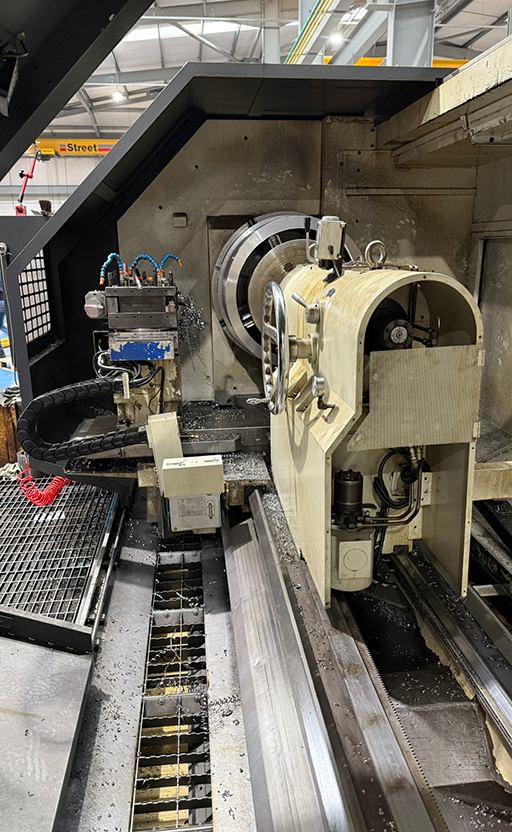

Heavy Duty Powered Tailstock.

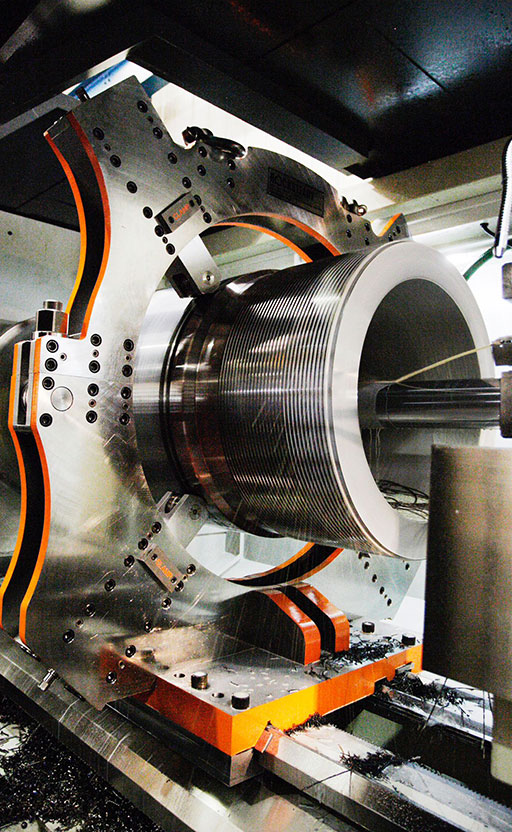

Rocksteady Large Capacity Heavy Duty Enclosed 4-Point Roller Steady Rest. Capacity Tba
Heavy Duty Central Boring Attachment Including Boring Bar.
Heavy Duty 4-Way Hydraulic Auto Indexing Toolpost.
Twin Front & Rear Chip Conveyors.
Oil Cooled Headstock.
Technical Specification
Technical Specification
Swing Diameter Over Bed
1,775 MM
Swing Diameter Over Carriage / Cross Slide
1,340 MM
Distance Between Centres
5,000 MM
Load Capacity Between Centres
TBA KGS
Spindle Bore
152 MM
Spindle Nose
A2-11”
Spindle Speeds
2 - 1,000 RPM
Spindle Speed Ranges
AUTO 3 STEP
Spindle Centre Taper
MT#6
Type Of Tool Post
4-POSITION HEAVY DUTY HYDRAULIC AUTO TOOLPOST
Tool Size
32 MM²
X-Axis Travel (Cross)
950 MM
Z-Axis Travel (Longitudinal)
TBA MM
X-Axis Rapid Traverse
6.0 M / MIN
Z-Axis Traverse
6.0 M / MIN
Tailstock Quill Diameter
235 MM
Tailstock Spindle Taper
MT#6
Maximum Quill Travel
200 MM
Bed Width
715 MM
Spindle Motor (30 Min / Cont.)
37.5 / 45.0 KW
X-Axis Servo Motor (Power)
7.0 KW
Z-Axis Servo Motor (Power)
7.0 KW
Length (Excluding Conveyor)
TBA MM
Width
TBA MM
Height
TBA MM
Weight
TBA MM
