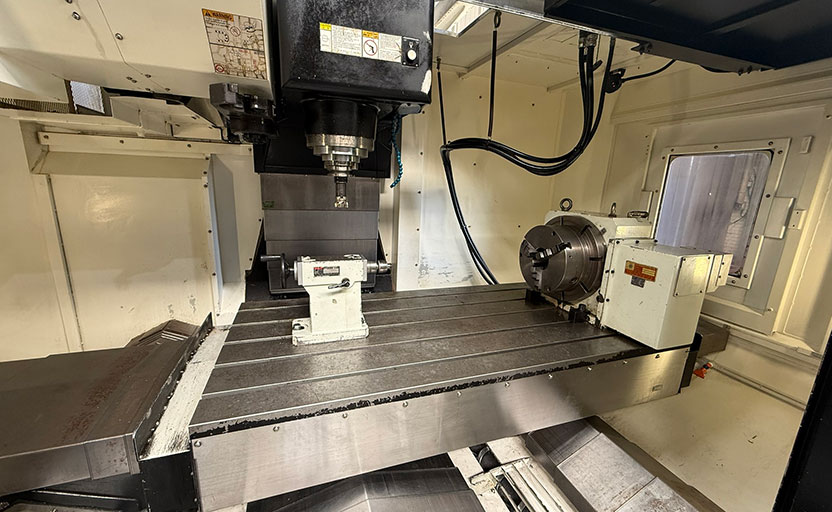

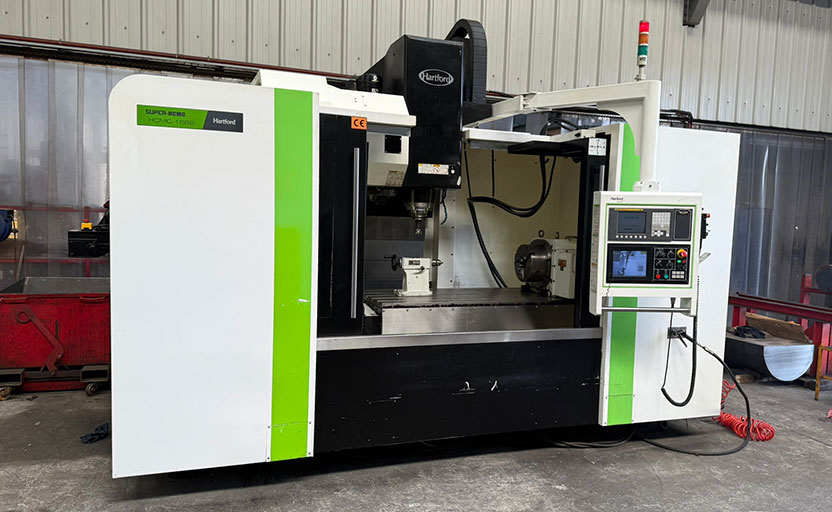

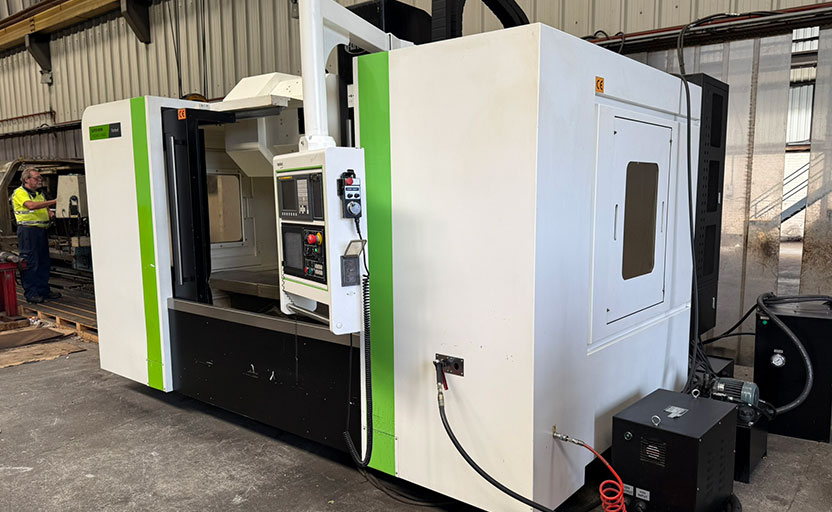

USED Hartford HCMC1682 Heavy Cutting Open Fronted Vertical Machining Centre – TWW Cat 8067
OPEN FRONTED VERTICAL MACHINING CENTRE WITH HARDENED & GROUND BOX GUIDEWAYS FOR ENHANCED CUTTING PERFORMANCE
FEATURES
One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity
6,000 RPM High Power Geared Main Spindle
Box Way Slides Provide Increased Stability & Rigidity
One Piece Spindle Head for Superior Rigidity
1,750 mm X 820 mm Table Surface
20 M / Min Rapid Traverse - X & Y Axis
18 M / Min Rapid Traverse - Z Axis

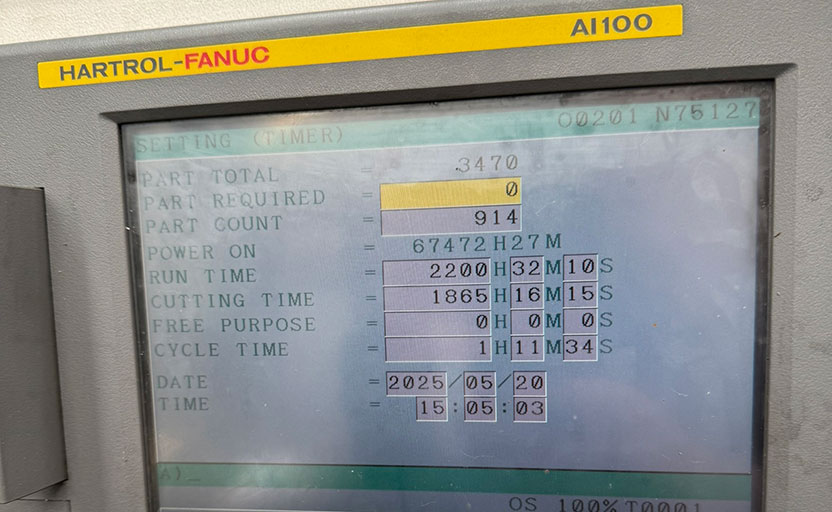

FANUC 18IMB CNC
Technical Specification
Options
Technical Specification
TABLE
Table Size
1,750 x 820 MM
Tee Slot (Size x Number x Pitch)
18 MM X 5 X 150 MM
Table Load
2,200 KGS
TRAVEL
Axis Travels - X / Y / Z
1,600 / 820 / 660 MM
Spidle Nose to Table
10 ~ 810 MM
Spindle Centre to Column
865 MM
SPINDLE
Spindle Taper
#50
Spindle Speeds - GEARED
6,000 RPM
FEED
Cutting Feedrate
10 M / MIN
Rapid Traverse (X / Y / Z)
18 / 18 / 18 M / MIN
ATC
Tool Storage Capacity
32 ARM TYPE
Maximum Tool Weight
20.0 KGS
Maximum Tool Diameter
Ø 125 MM
Maximum Tool Length
350 MM
Tool Shank
BT50
Pull Stud Bolt
P50T-1
MOTOR
Spindle Drive Motor (Fanuc)
26.0 KW
X-Axis Drive Motor (Fanuc)
4.0 KW
Y-Axis Drive Motor (Fanuc)
4.0 KW
Z-Axis Drive Motor (Fanuc)
4.0 KW
POWER SUPPLY
Electric Power Consumption
55 KVA
Air Pressure
6.5 KG / CM²
Voltage
415V / 50HZ / 3PH
MACHINE
Floor Space (Fully Guarded)
4,000 X 4,310 MM
Height
3,380 MM
Weight
12,400 KGS
Options
- STANDARD MACHINE FEATURES
- Fully Enclosed Splash Guard
- Cooling System
- Centralized Automatic Lubrication System
- Oil Fluid Separator
- Two Internal Screw Type Chip Conveyors
- Coolant Jets Around The Spindle Operation
- Finish Lamp
- Tool Box
- Operation & Programming Manuals
- Fluorescent Lamp
- Air Blast Through The Spindle
- Levelling Bolts & Blocks
- Remote Manual Pulse Generator
- Convection Heat Exchanger In The Control
- Auto Power Off System
- RS-232 Interface
- Cycle Finish Lamp
- Suspension Operator Control Panel
- Electrical & Mechanical Manuals
