Takisawa Taiwan LX-2500Y Series Slant Bed, Y-Axis CNC Lathe

HIGH PRECISION RIGID Y-AXIS CNC TURNING CENTRE WITH HARDENED & GROUND BOX GUIDEWAYS, BUILT IN MAIN SPINDLE MOTOR, GEARED HEADSTOCK, PULLEY HEADSTOCK OPTIONS, C-AXIS, DRIVEN TOOLS, SERVO TAILSTOCK & 10″ STD CHUCK SIZE

Takisawa Taiwan LX-2500Y Series Slant Bed, Y-Axis CNC Lathe
Takisawa Taiwan LX-2500Y Series Slant Bed, Y-Axis CNC Lathe
Takisawa Taiwan LX-2500Y Series Slant Bed, Y-Axis CNC Lathe
Takisawa Taiwan LX-2500Y Series Slant Bed, Y-Axis CNC Lathe
Takisawa Taiwan LX-2500Y Series Slant Bed, Y-Axis CNC Lathe
FEATURES
Y-Axis Slant Bed CNC Turning Centre with C-Axis & Driven Tools.
Hardened & Ground Box Guideways (LG Tailstock).
One-Piece Heavy-Duty Cast Iron Bed Construction for High Accuracy & Rigidity.
12 Station High Accuracy Servo Turret.
Main Spindle - 3,500 RPM - 22.0 / 15.0 KW - Built-In Motor.
FANUC 0iTF PLUS CNC CONTROL
Technical Specification
Options

Technical Specification

Std. Chuck Diameter
(10") 254 MM
Max. Swing Diameter
730 MM
Max. Turning Diameter
420 MM
Max. Turning Length
698 MM
Bar Capacity - MAIN
81 MM
Spindle Speeds - MAIN
3,500 RPM
C1-Axis Indexing Angle - MAIN
0.0001 DEG
Spindle Motor - MAIN
22.0 / 15.0 KW
Number of Turret Stations
12
Axis Travel - Y
+50 - 50 MM
Rapid Traverse Rates - X / Y / Z
24 / 10 / 30 M/MIN

Options

  • (10”) Ø 254 MM Hollow 3 Jaw Power Chuck - LH & RH
  • Built In Spindle Motor, 2 Speed Gearbox or Pulley Head Options

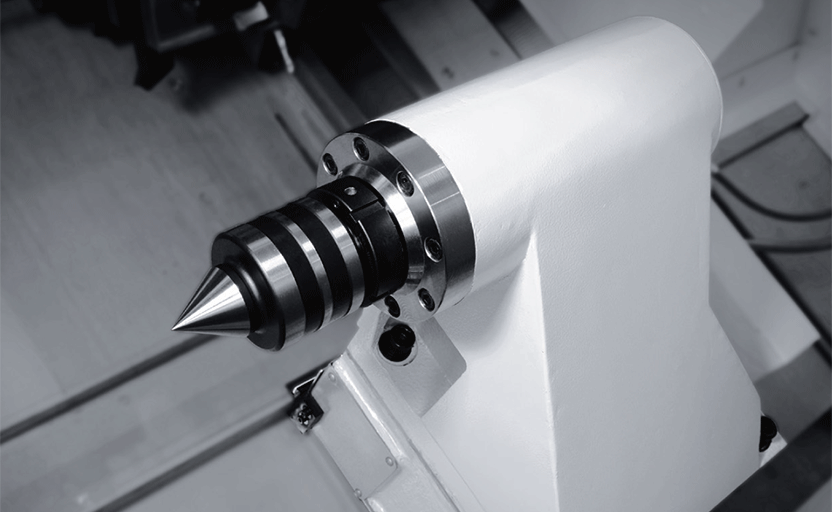

  • Servo Tailstock
  • Set of Soft Jaws
  • Chuck Clamp Foot Switch
  • Quick Tool Setter
  • Operation Manuals
  • Door Interlock
  • Full Splash Guard System
  • Call Light
  • Tool Box
  • Levelling Pads & Bolts
  • Electrical & Mechanical Drawings
  • Chip Conveyor, Tool Setting Device, Barfeed Interface, Parts Catcher, Standard Tooling Package, Coolant Equipment.
  • FANUC 0iTF PLUS CNC Control
