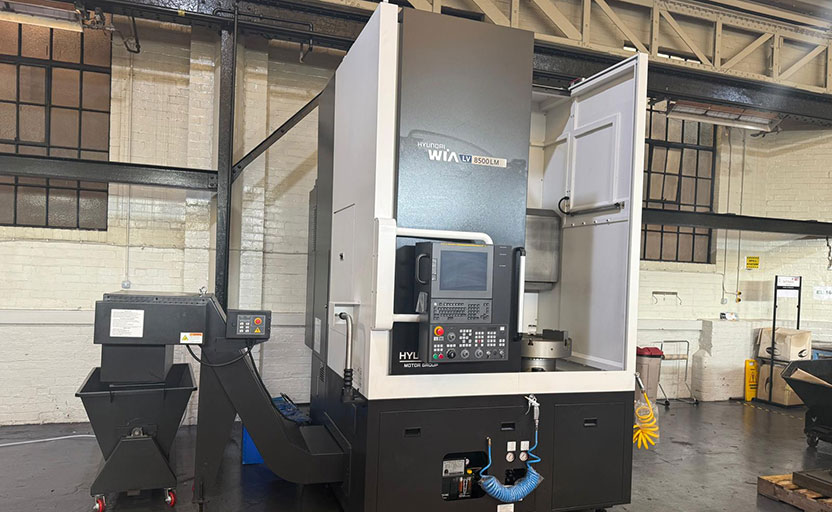

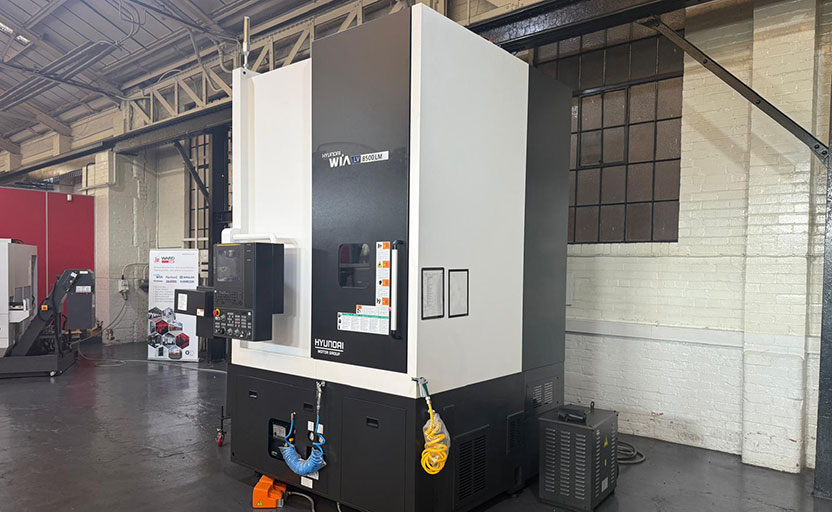

HYUNDAI-WIA LV8500LM Compact Type CNC Vertical Lathe with C-Axis & Driven Tools – TWW Cat 7967
HIGH PERFORMANCE 18″ [21″] [24″] CHUCK 3-AXIS COMPACT VERTICAL TURNING CENTRE WITH HARDENED & GROUND BOX GUIDEWAYS & BMT65 TURRET [ATC OPTION] FOR RIGHT SIDE, LEFT SIDE [L] OR DUPLEX CONFIGURATION WITH C-AXIS & LIVE TOOLS
- AIR – AIR GUN
- CHIP – CONVEYOR SIDE HINGED WITH LARGE SWING TYPE CHIP BOX
- CNC.OP – TOOL MONITORING SYSTEM (HWTM)
- CS – COOLANT GUN
- CS – HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD (RATED AT 60HZ SUPPLY)
- POW – TRANSFORMER – 415V 3PH 50HZ
- PRO – QUICK TOOL SETTER – MANUAL
- SPGB – 24″ CHUCK, 1,760 RPM, 45.0/37.0/30.0 KW, 3,494/2,873/2,329 NM GEARBOX
FEATURES
Stable spindle structure with excellent heavy duty cutting ability
2 step chuck pressure mechanism adopted to minimize workpiece deformation
Various peripheral equipment can be used for optimized machining
Designed for optimal chip disposal
“Right” and “Left” structure for practical automation construction
Hardened & Ground Box Guideways

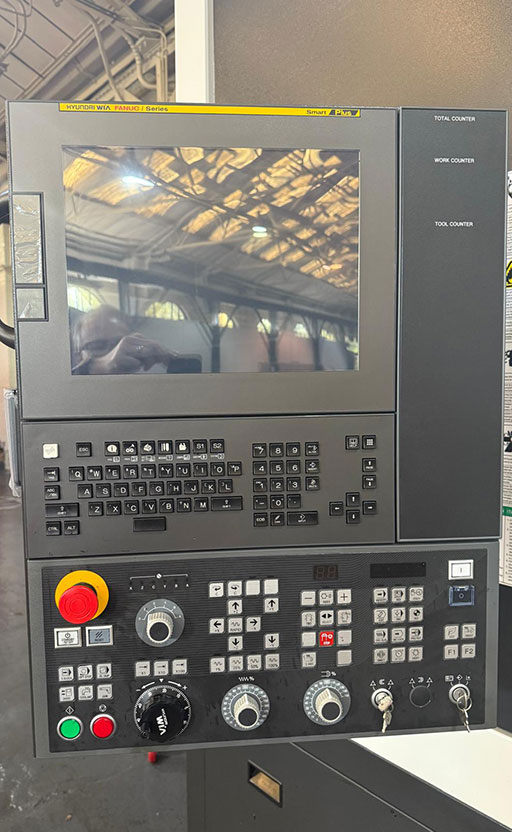

HYUNDAI-WIA FANUC i SERIES - SMART PLUS CNC
Technical Specification
Technical Specification
Std. Chuck Diameter
18" - 457 MM
Swing Diameter Over Bed
890 MM
Swing Diameter Over Carriage
710 MM
Max. Turning Dia.
850 MM
Max. Turning Length (Height)
800 MM
Spindle Nose
A2-11
Spindle Speeds
2,000 RPM
Spindle Power
37.0 / 30.0 / 22.0 KW
Live Tools Spindle Speeds
4,000 RPM
Live Tools Spindle Power
11.0 / 7.5 KW
Rapid Traverse Rates - X / Z
20 / 20 M/MIN
C-Axis Indexing
0.001 DEG
Number of Turret Stations
12
